Anchorage of brickwork cladding

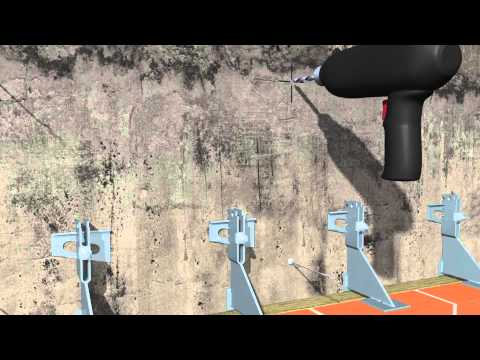

Aesthetically pleasing, cost-effective and durable: Brickwork cladding is one of the most popular façade types. It offers sustainable protection against noise, heat, cold and the elements, making it suitable for both new construction as well as for renovation projects. Brickwork meets the highest aesthetic demands without significant ongoing maintenance costs. HALFEN proven brickwork support brackets provide durable and reliable anchorage of façade cladding. HK5 brackets support the dead load of the brickwort facade, wind loads are transferred to the support structure via cavity wall ties and scaffolding loads via scaffold anchors.
The product range includes single and angle support brackets for load step 4 / 8 / 12 kN and for cantilever lengths up to 350 mm. Special constructions are possible.
For more detailed information please refer to our Technical Product catalogues
KW and KWL Angles
The KWL and KW Bolt-on angles provide a simple alternative for supporting continuous brick cladding. The KW and KWL Bolt-on angles are used when the support structure is to remain visible from below, but the ventilation gap and the thermal insulation is to remain hidden.
HALFEN HTA-ES Ties for precast lintels and FSW Precast lintel support bracket with bar
Loads above large windows must be supported using lintels. Precast lintel elements are high-quality alternatives to visible angles. These can be securely anchored to the HK5-S Console using the HTA-ES Cast-in channel. HALFEN T-bolts are used here to ensure efficient installation. The precast lintel bracket is also used to install pre-fabricated lintels. The brackets are cast-in to the concrete at both ends of the lintel; this allows the lintel to be supported on the brickwork to the left and right of the opening.
HALFEN Cavity wall tie
Cavity wall ties reliably transfer wind loads from the surface of the brickwork to the main building structure. Cavity wall ties are anchored in the load support wall and the brickwork cladding and transfer both tension and pressure loads.
HALFEN HGA Scaffold anchor
HGA-Q HALFEN Scaffold anchors are suitable for damage-free fixing of scaffolding to ETICS façades, brick/masonry or concrete panel façades. When the scaffold anchor is not required, the eyebolt is removed with the main bracket remaining in place, concealed in the façade.
- Building authority approved head
- Type tested console
- CE marking
- Three loads classes: 4.0 kN, 8.0 kN and 12.0 kN
- ±20 mm height adjustment
- Individual and efficient solution for every application
- Very low thermal resistance values
