Framing channels

HALFEN Framing channels

The HALFEN Framing channels have all the advantages of quick, safe and permanently adjustable fixing solutions. A range of building components and assemblies can be fitted to the channel using HALFEN Bolts.

The location of the bolt is easily modified by loosening the nut and moving the screw with the bolt along the channel and permits full flexibility.

Individual solutions and a multitude of possible applications are possible when used in combination with the precisely engineered HALFEN accessories.

Additional Information

HALFEN Framing channels can be used for multiple applications in:

Plant construction
Mechanical engineering
Structural steel
Automotive engineering
Conveyor systems
Utility services in tunnel and bridges
Offshore supply projects
Utility services in data centres and server rooms

Guide rails fixing

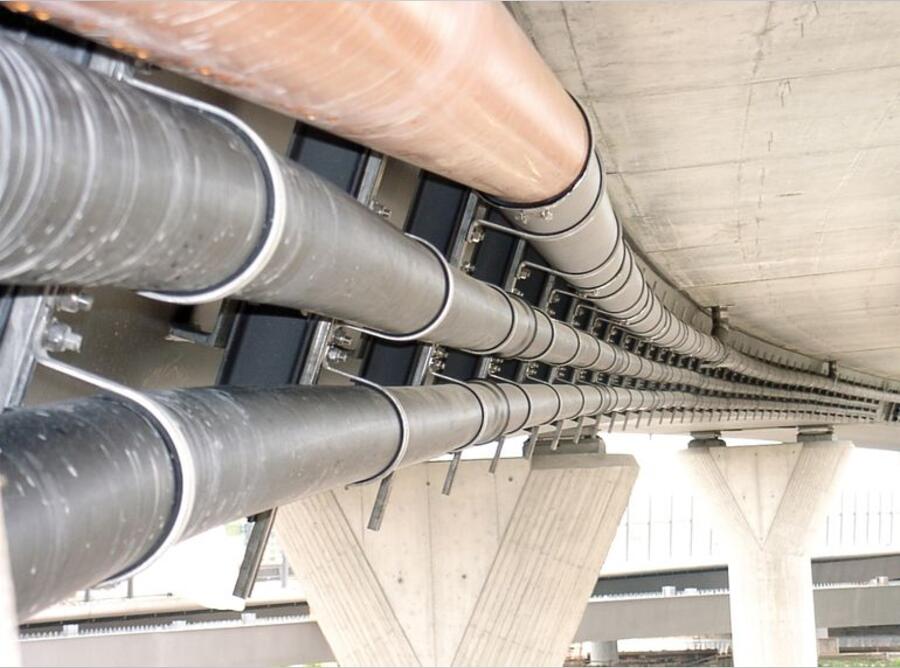

Framing system - Pipe fixings

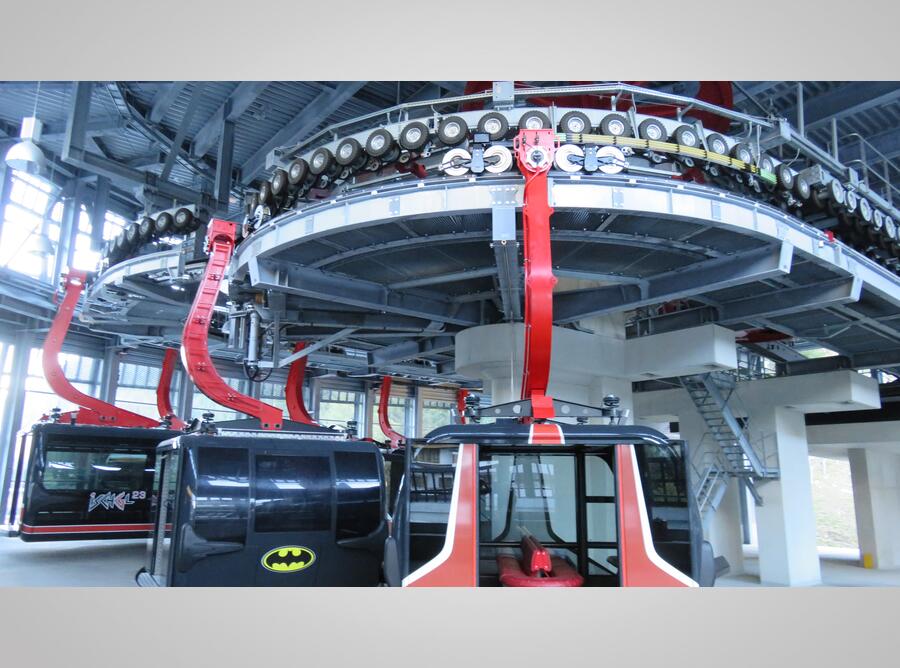

Guide rails fixing

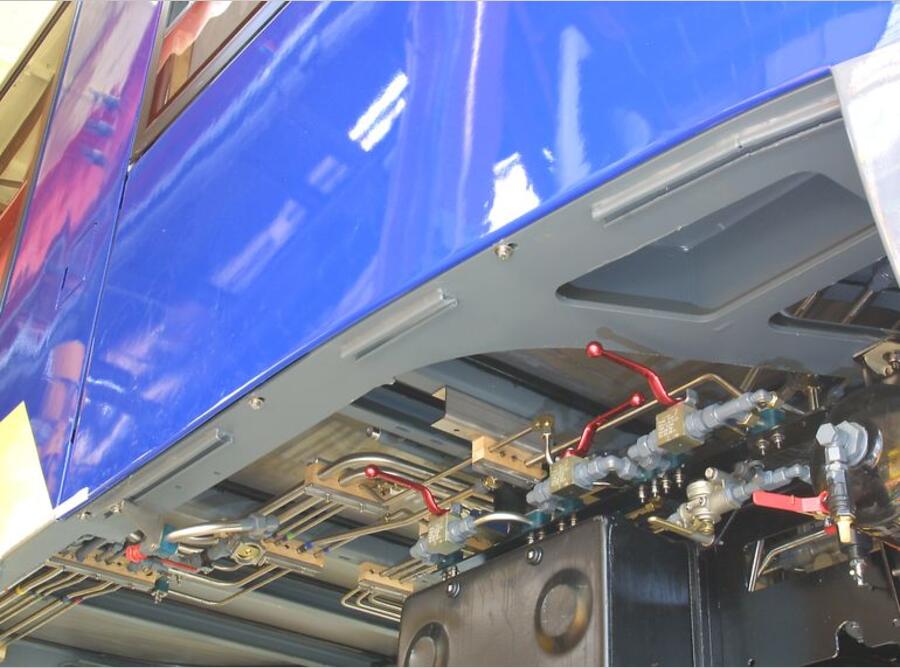

Fixing of train paneling

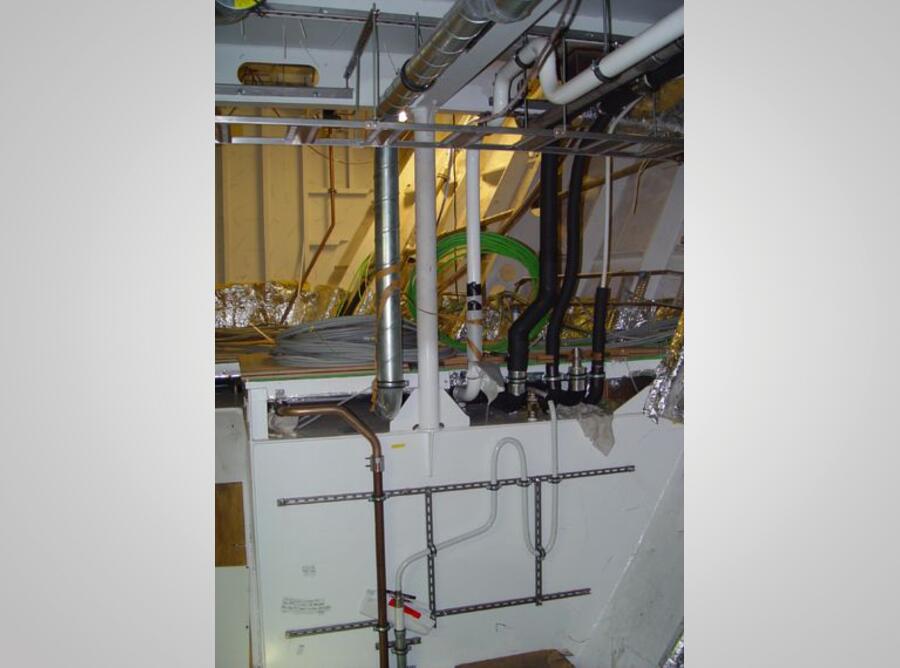

Cabel routeing in shipbuilding

Cable routeing in shipbuilding

Cold-rolled framing channels

Cold-rolled channels are particularly cost-effective when used for low load applications. They are available in slotted and unslotted types.

HM/HL Framing channels:

The wide range of channel available make this system particularly economical

HZM/HZL Framing channels

For loads in the longitudinal direction of the channel
Non-slip connection for high loads in the channel

Hot-rolled framing channels

The hot-rolled rails can also be used for high and for dynamic loads. Also suitable for welding.

HM Framing channels:

For high tension loads
Also suitable for longitudinal load transfer when using in combination with HSR nibbed bolts (only for normal steel)

HZM Framing channels (serrated)

For high loads in the longitudinal direction of the channel
Available in 5 channel sizes

Curved framing channels

Customer-specific curved framing channels are also available.

Curved framing channels:

Customer and project-specific planning
Complex modification, drilling or cutting threads in finished, corrosion-protected components is no longer necessary

Complete flexibility in positioning and dimensioning of the bolts
Corrosion protection is freely selectable:
- Strip galvanized framing channels for minimal corrosion protection
- Hot-dip galvanized steel for high corrosion protection
- (A2, A4, HCR) Stainless steel framing channels for maximum corrosion protection
Allows quick installation and adjustment of plant and building components
Easy on-site modifications using a simple nut and bolt system
On-site modifications are dirt and noise free

Available materials:

WB = Mill-finished steel
HDG = Hot-dip galvanized steel
SV = Pre-galvanized steel (Sendzimir)
A2 = Stainless steel (Austenite microstructure)
A4 = Stainless steel (Austenite microstructure)
HCR = High corrosion resistant steel (Austenite microstructure)
