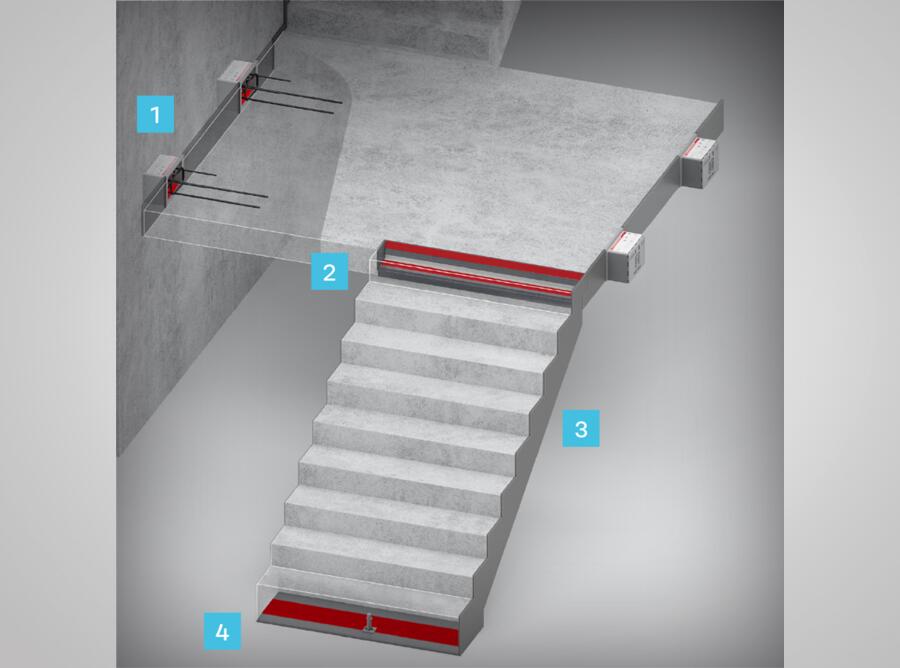

Impact sound insulation for stairs

Impact sound is an undesirable and specific type of sound transmission. Especially in staircases of apartment buildings, inadequate impact sound protection can lead to annoying disturbances. To solve this problem, monolithic stair elements can be acoustically separated from adjacent building components with the HALFEN sound insulation system. HALFEN impact sound insulation products are perfectly qualified to meet the requirements for impact sound reduction.

Additional Information

HBB - Impact sound insulation box for acoustic decoupling of the landing
HTF-T - Impact sound insulation element for acoustic decoupling of a flight of stairs
HTPL - Impact sound insulation plate for lateral decoupling of a flight of stairs and the wall of the staircase
HTF-B - Impact sound insulation element and CRET-TS SET impact sound insulation dowel for acoustic decoupling of precast concrete stairs and the floor slab
HTT - Impact sound insulation element for decoupling of a precast or in-situ poured staircase, to an in-situ cast concrete

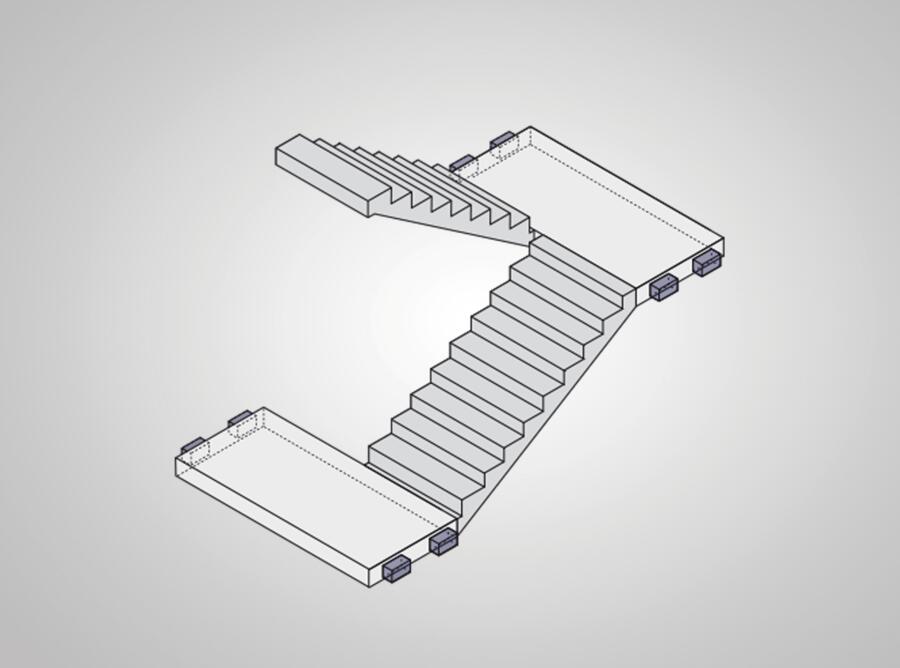

Decoupling of the landing slab

HBB Impact sound insulation box for installation of on-site or precast concrete landing slabs

The HALFEN impact sound insulation box is used as a point support for the landing slab. The load is transferred via high-quality elastomeric bearings. The elements can be installed in in-situ concrete as well as in prefabricated landing slabs, at the connection with concrete or masonry walls.

Acoustic decoupling of a precast stair element

HTF-T Impact sound insulation element for placement of a precast stair flight on a corbel foreseen in a landing slab.

HALFEN HTF-T impact sound insulation elements are suitable for supporting prefabricated stair flights on in-situ poured or precast landings. The load is transferred through profiled elastomeric bearings. The impact sound insulation is located between the landing and the flight of stairs.

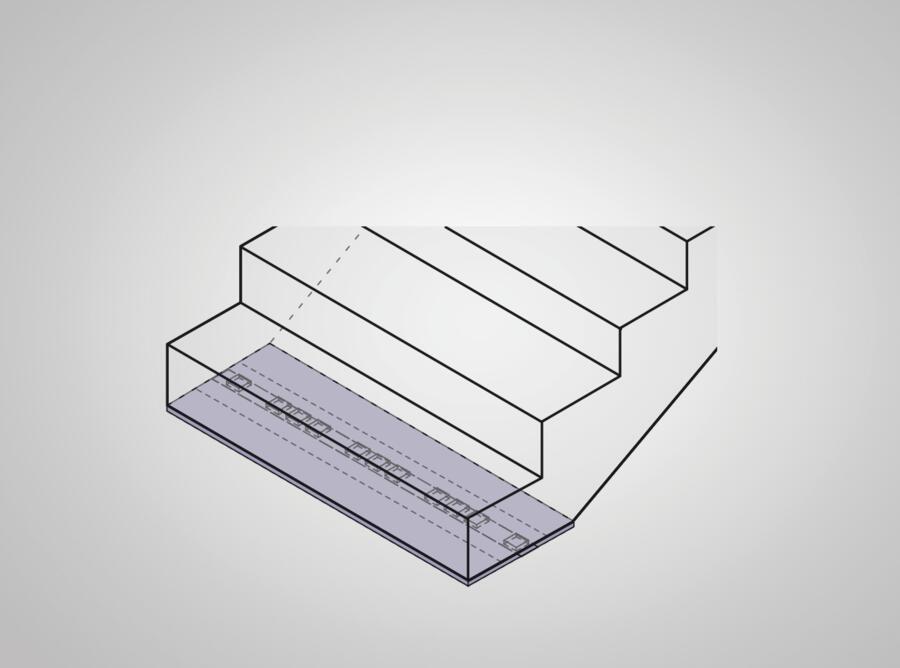

HTF-B Impact insulation element for acoustic decoupling between precast concrete stairs and the supporting slab.

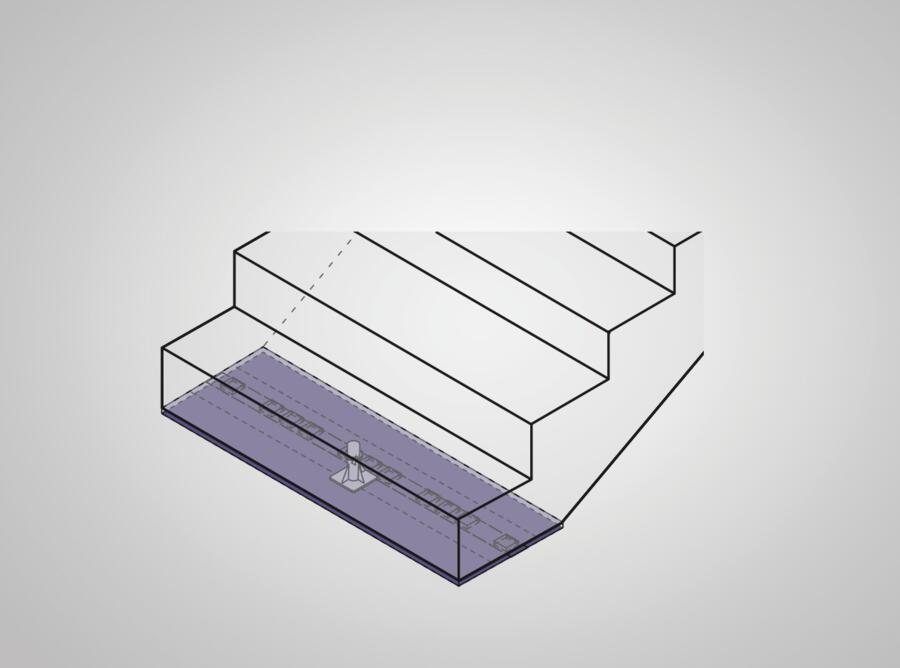

CRET-TS SET impact sound insulation dowel is positionned vertically in the joint between the bearing slab and the first step of the staircase, securing the staircase in the right position, while guaranteeing the impact sound insulation provided by the HTF-B impact sound insulation mat.

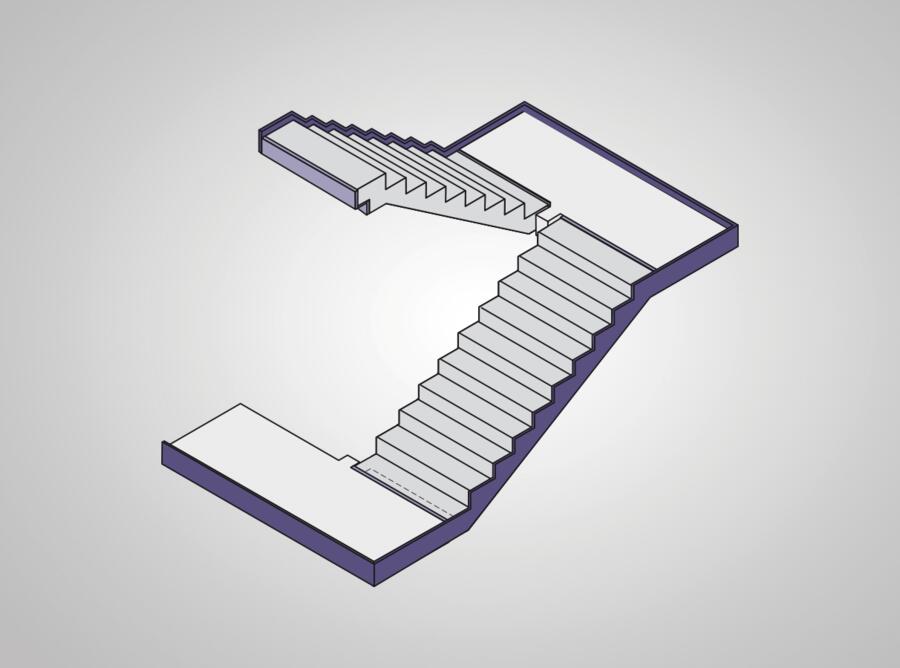

HTPL Impact sound insulation for lateral edge decoupling of a flight of stairs and a staircase wall

Acoustic decoupling of an on-site cast stair element

HTT Impact sound insulation element for connection of an in-situ concrete or precast staircase to an in-situ concrete landing-slab

HALFEN HTT Impact sound insulation elements are suitable for on-site and precast concrete staircases to on-site cast landing-slabs with predominantly static loads. The HTT Elements transfer shear and horizontal loads.

HBB Impact sound insulation box

Excellent impact sound insulation values, tested according to DIN 7396
The requirements of superior acoustic comfort according to DIN 4109-5 are far exceeded
The highest requirements of the VDI or DEGA guidelines can be met
Dimensionally stable box with heavy-duty, non-reinforced elastomeric bearings for point connection
One size fits all landing heights
Variant for prefabricated elements without filler
Variant for cast-in-place concrete - with filler and adapted nails for fastening to the formwork
Type-test according to EC2 for more planning security. Additional corbel dimensioning can therefore be omitted
HBB-Rebar-cage-VVH with optimised reinforcement arrangement and without additional on-site stirrups.
HBB-SET can be ordered with HBB-Box and HBB-Rebar-cage-VVH

HTF Impact sound insulation elements

Excellent impact sound insulation values, tested according to DIN 7396
The requirements of superior acoustic comfort according to DIN 4109-5 are far exceeded
The highest requirements of the VDI or DEGA guidelines can be met
Heavy-duty profiled, non-reinforced elastomeric bearings
Practical attachment to the stair by double-sided adhesive tapes
Adhesive tapes with protruding foil to allow its easy removal
Robust PE foam that can be cut to size
Three load capacity levels for reliable load transfer
Three standard lengths
Special lengths and cut to size possible
Concrete grey colored in order to match the prefabricated elements, eliminating the need of any additional finishing

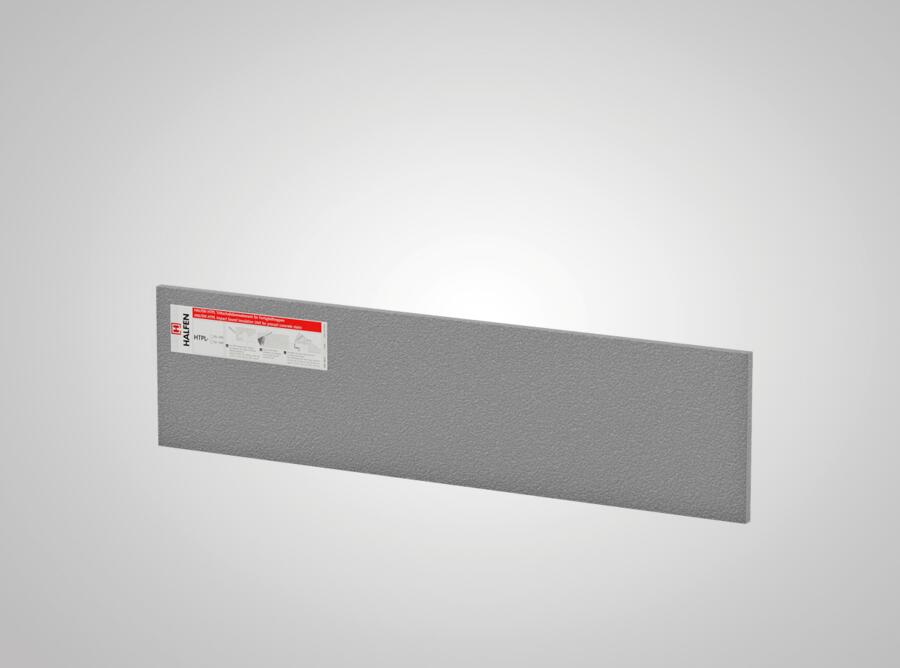

HTPL Impact sound insulation plate

Easy mounting on the stair flight by mean of double-sided adhesive tapes
Robust PE foam that can be cut to size
Two heights, suitable for landings and for stairs
Concrete grey colored in order to match the prefabricated elements, eliminating the need of any additional finishing

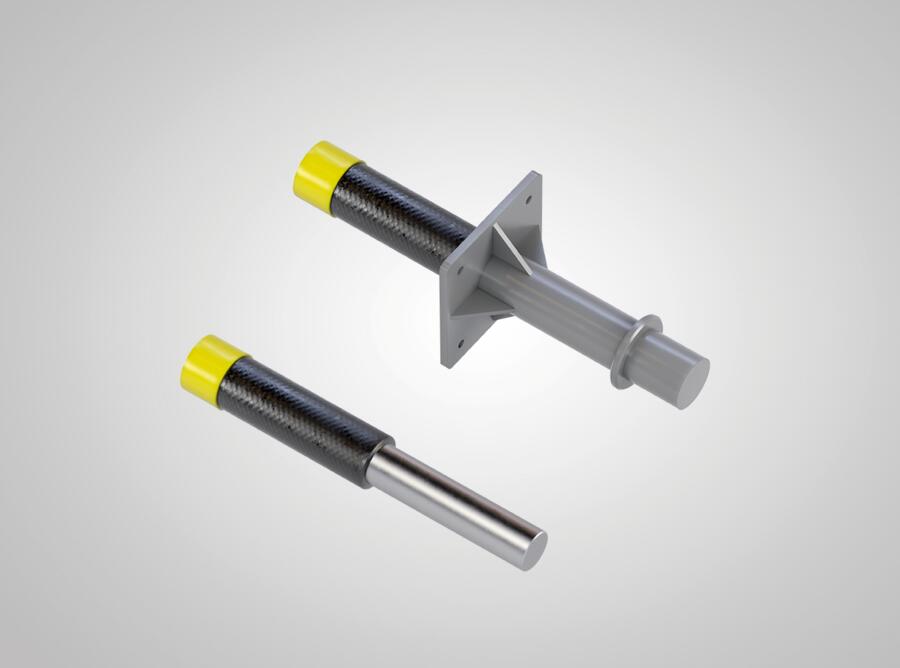

CRET-TS SET

Reliable acoustic anchor between the stair flight and the supporting slab
Stainless steel dowel with acoustic sleeve to reduce impact sound transmission
Installation sleeve available as installation aid

HBB impact sound insulation box

Available sizes: a unique box size for all landing slabs with a minimum thickness of 160mm

Available types:

for precast landings:

HBB-V
HBB-VV
HBB-VVH

for in-situ landings

HBB-OV
HBB-OVV
HBB-OVVH

Acoustic parameters tested in accordance with DIN 7396

Weighted impact sound level difference ∆L*_w, landing ≥ 26 dB

Weighted impact sound level reduction ∆L_w, landing ≥ 35 dB

Weighted impact sound level difference ∆L*_n,w ≥ 29 dB

Fire protection of the components up to R90 in accordance with certified fire protection properties and expert report

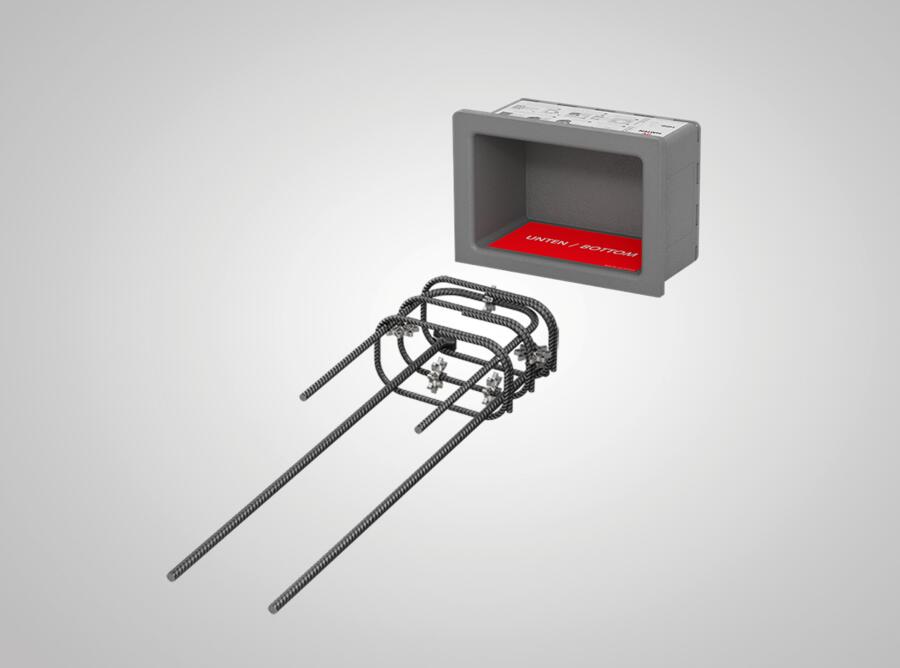

HBB-Rebar-cage-VVH

Rebar cage: reinforcing steel B500
Type test: test report S-WUE/220241
Available sizes: one size for landings from 160mm thickness
Available types: one type for all load directions
Fire protection: Fire resistance rating: R90 acc. EN 1992-1-2, table 5.8

HTF-T Impact sound insulation element

Stair landing: in-situ cast or precast concrete element

Stairs: precast element

Available sizes: length 1000mm, 1200mm, 1500mm and special lengths

Console depth: 130 - 160mm

Load range: T0, T1, T2

Acoustic parameters tested in accordance with DIN 7396

HTF-T2

Weighted impact sound level difference ∆L*_w, stairs ≥ 27 dB
Weighted impact sound level reduction ∆L_w, stairs ≥ 29 dB
Weighted impact sound level difference ∆L*_n,w ≥ 31 dB

HTF-T1

Weighted impact sound level difference ∆L*_w, stairs ≥ 29 dB
Weighted impact sound level reduction ∆L_w, stairs ≥ 31 dB
Weighted impact sound level difference ∆L*_n,w ≥ 34 dB

HTF-T0

Weighted impact sound level difference ∆L*_w, stairs ≥ 28 dB
Weighted impact sound level reduction ∆L_w, stairs ≥ 28 dB
Weighted impact sound level difference ∆L*_n,w≥ 33 dB

Fire protection of the components up to R90 in accordance with certified fire protection properties and expert report

HTF-B impact sound insulation element

Floor slab: in-situ cast or precast concete element
Stairs: in-situ cast or precast concete element
Available sizes: lengths 1000mm, 1200mm, 1500mm and special lengths
Width 600mm

Acoustic parameters tested in accordance with DIN 7396

HTF-B2

Weighted impact sound level difference ∆L*_w, stairs ≥ 27 dB
Weighted impact sound level reduction ∆L_w, stairs ≥ 28 dB
Weighted impact sound level difference ∆L*_n,w ≥ 31 dB

HTF-B1

Weighted impact sound level difference ∆L*_w, stairs ≥ 28 dB
Weighted impact sound level reduction ∆L_w, stairs ≥ 30 dB
Weighted impact sound level difference ∆L*_n,w≥ 33 dB

Fire protection of the components up to R90 in accordance with certified fire protection properties and expert report

HTPL impact sound insulation plate

Floor slab: in-situ cast or precast concete element
Stairs: in-situ cast or precast concete element
Available sizes: lengths 1000m
Material: Foam material class B2 according to DIN 4102
Fire protection of the components up to R90 in accordance with certified fire protection properties and expert report

HTT impact sound insulation element

Stair landings as in-situ concrete or semi-precast element
Stair flight as in-situ concrete or precast element

Sound insulation:
Acoustically tested: Impact sound level difference ∆L_w = 12 dB acc. to investigation report 2027/7205-1-Re, IBMB Braunschweig

Fire protection:

Fire protection tested: F90/F120 or R90/R120 according to expert opinion GA-2017/128, IBB GmbH

Type test:

S-WUE 040519, LGA Würzburg.

Materials:

Galvanised steel sheet, mineral fibre insulation material, unreinforced elastomeric bearings with general building authority approval, B500NR reinforcing steel.

Range:

In three load levels for stair widths from 90 to 200 cm and landing heights from 16 to 25cm.
